R404A Cold Storage Plant 81m³ Temperature 0 To 12℃ For Vegetable

Cold storage outer dimensions: 64.53m=81m3 for use temperature 0 to +12 ℃

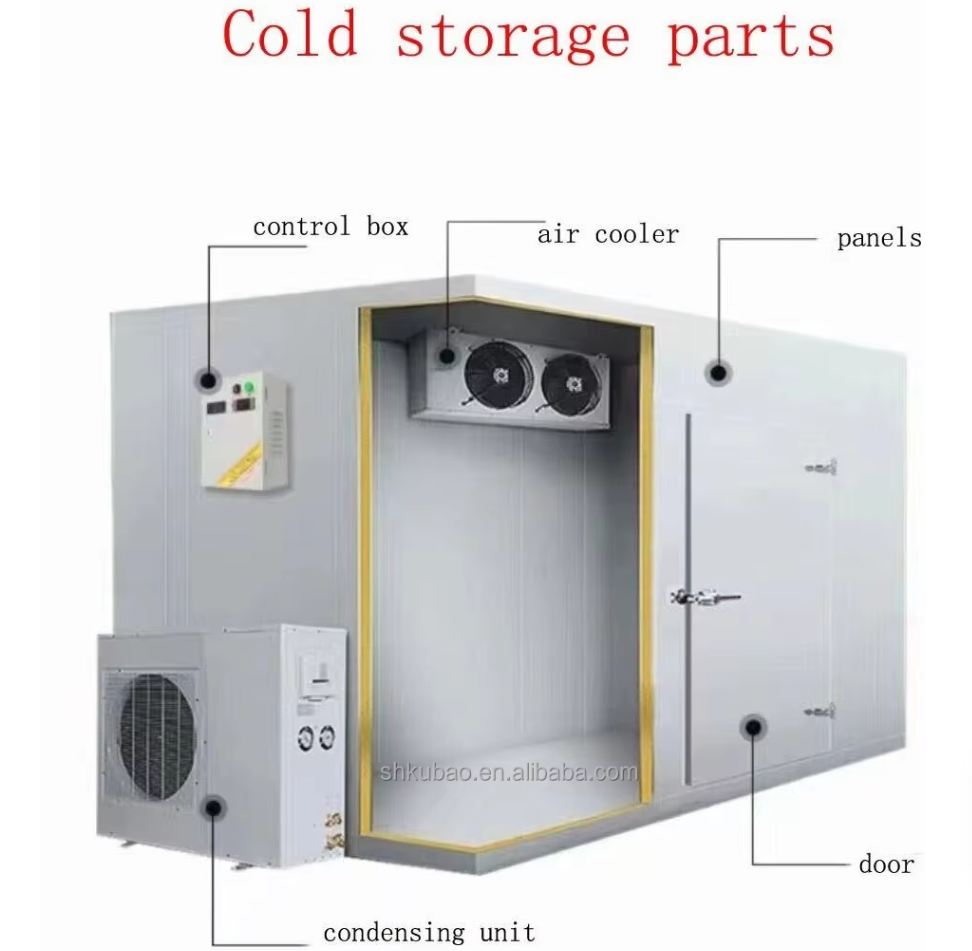

Number	Name	Parameters

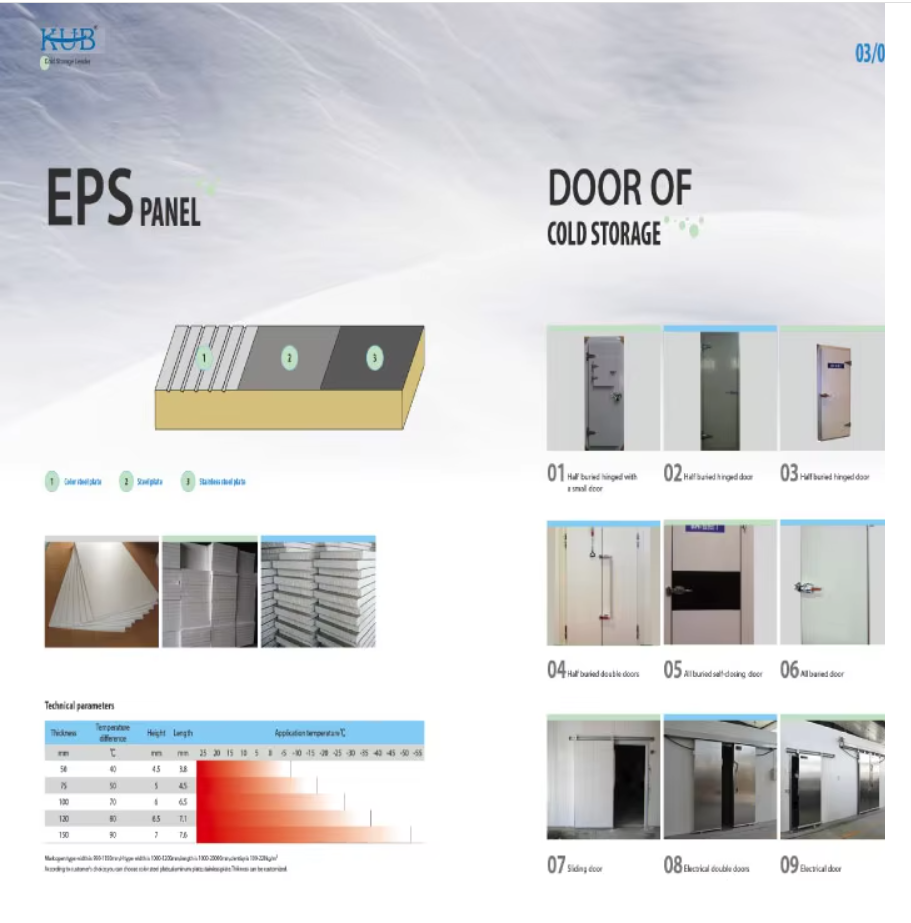

1	panels	Thickness: 100mm/0.426mm, Polyurethane double-sided color steel plate
2	door	Hinged door 8001800100mm Electric heating wire Polyurethane double-sided color steel plate right door
3	Light	20W 220v 50hz
4	Condensing unit	ZB38/5HP/R404A /380V 50HZ
5	Air cooler	DD40/380volts/ 50 Hz /3Ph electric defrost+Boom screws +sewer heating line 4M
6	Expansion valve	TE2
7	Control box	NAK121/5.5KW
8	PVC water pipe	4m/pcs
9	copper pip	Φ19
10	copper pipe	Φ12
11	elbow	Φ19
12	elbow	Φ12
13	Insulation tube	Φ19mm
14	Ties
15	P type elbow	Φ19
16	slap	Φ19
17	slap	Φ12
18	Wires

R404A Cold Storage Plant 81m³ Temperature 0 To 12℃ For Vegetable
